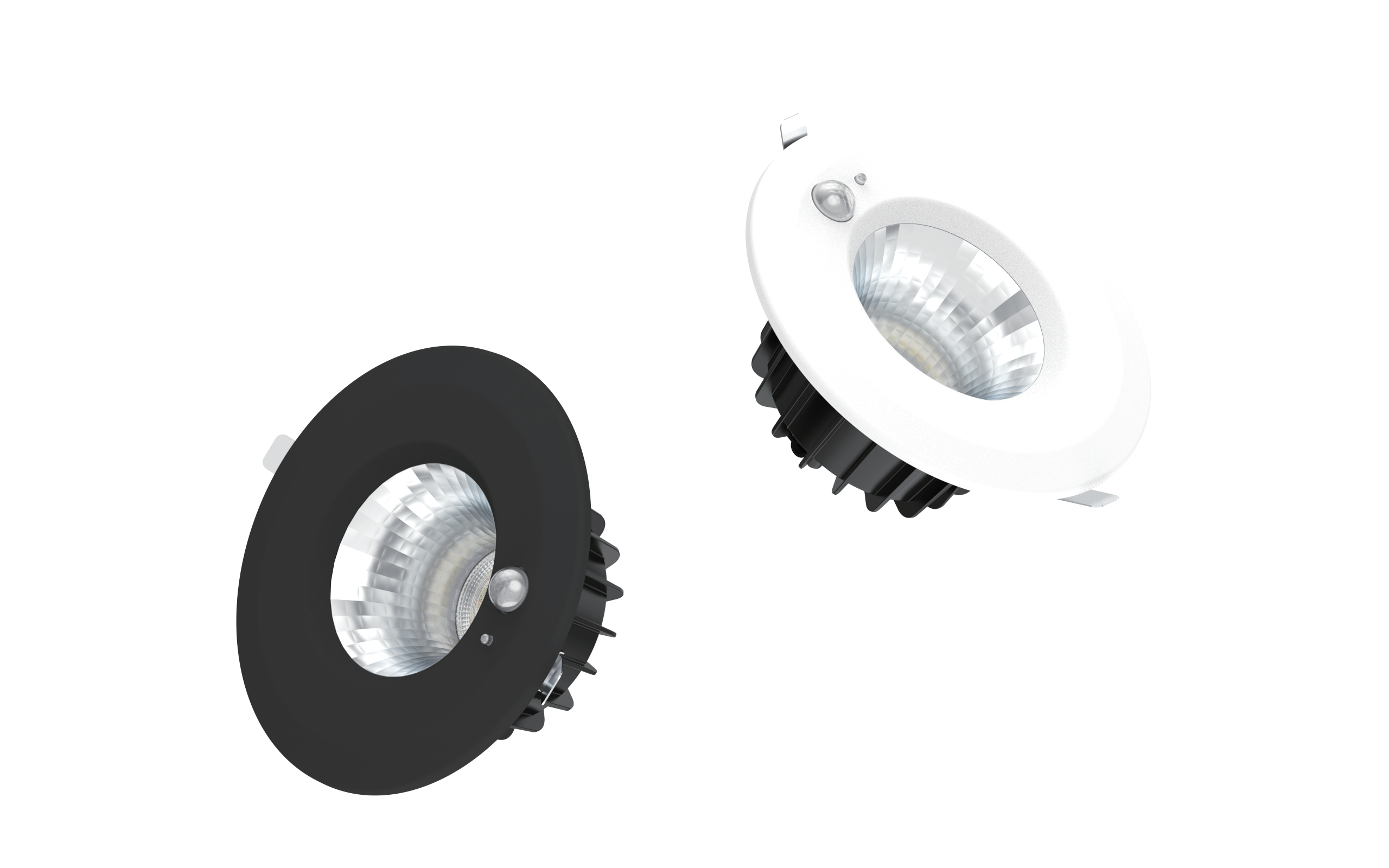

Reeves — Modular Commercial Downlight Ø150-200 mm Sensor PIR UGR＜19
Flexible, Smart & Low-Glare Commercial Downlighting
The Reeves Modular Commercial Downlight (Ø150–200 mm) is a versatile, sensor-integrated recessed lighting solution engineered for modern commercial spaces. Combining tool-free modularity, PIR motion sensing, UGR＜19 anti-glare comfort, and field-adjustable power/CCT, it delivers reliable, energy-efficient illumination for offices, retail stores, hotels, corridors, and public areas. Designed for easy installation, customization, and maintenance, the Reeves downlight streamlines project rollouts while elevating visual comfort and sustainability.
Key Features & Benefits

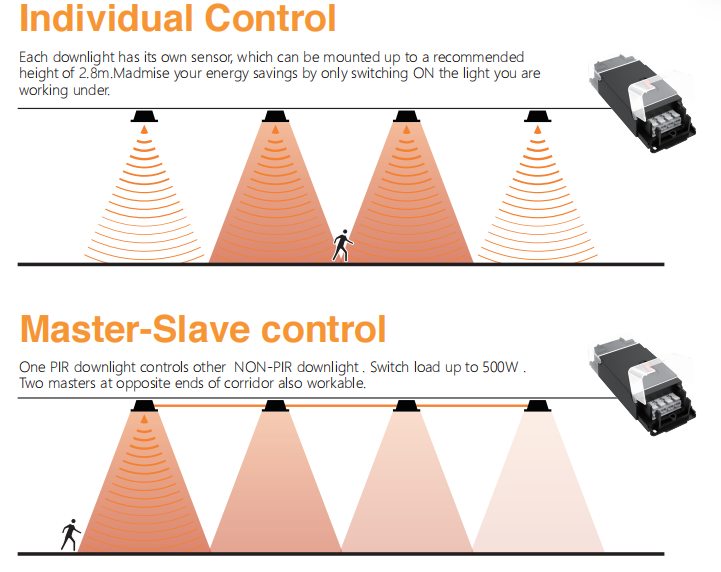

1. Easy Master-Slave Switching | Tool-Free Bezel Replacement
Swap bezels, not fixtures — the Reeves downlight enables instant master-slave configuration by simply replacing the front bezel. No rewiring, no complex setup, no extra tools required. This feature drastically cuts installation and commissioning time for large-scale projects, ensuring synchronized lighting across zones and reducing labor costs for contractors and facility managers.
2. Adjustable PIR Sensor | Customizable Settings via DIP Switches
Equipped with a high-sensitivity PIR motion sensor, the Reeves downlight offers precise control over detection time, distance, and sensitivity via user-friendly DIP switches on the bezel’s back. Tailor sensor behavior to space usage (e.g., long hold times for offices, short delays for corridors) to maximize energy savings without compromising safety or convenience. The easy-fit magnetic sensor module ensures quick, secure attachment during installation or upgrades.
3. High-Performance Illumination | 15–25W Switchable, 3CCT, CRI 80
Deliver consistent, comfortable light with flexible performance specs:
Power: 15–25W switchable — adapt brightness to room size and lighting needs.
3CCT switchable (front-accessible) — select 2700K，3000K, 4000K, directly on the fixture, no electrician needed.
CRI 80— ensures natural color rendering for retail displays, office tasks, and hospitality interiors.
Ideal for general commercial lighting where adaptability and quality matter.
4. Anti-Glare Design | UGR＜19 for Enhanced Visual Comfort
Engineered with a precision optical system, the Reeves downlight achieves UGR＜19, the industry benchmark for low-glare commercial lighting. Reduce eye strain in workspaces, create a welcoming ambiance in retail, and comply with modern lighting standards for visual comfort in occupied areas. The sleek, recessed profile complements contemporary ceiling designs.
5. Versatile Cutout Size | Ø150–200 mm Universal Fit
Designed for broad compatibility, the Reeves downlight fits cutout sizes from Ø150 mm to Ø200 mm, making it suitable for most standard commercial ceiling openings. This one-size-fits-most versatility simplifies inventory management for contractors and supports retrofitting projects across diverse spaces.
Applications
Perfect for commercial lighting projects requiring flexibility, smart control, and low glare:
- Office spaces — UGR＜19 reduces eye strain; PIR sensor saves energy in unoccupied areas.
- Retail stores — 3CCT & CRI 80 enhance product displays; modular design supports zone customization.
- Hospitality (hotels, lobbies) — warm, glare-free light boosts guest comfort; master-slave syncs lighting across floors.
- Corridors & public areas — PIR motion detection ensures safety and energy efficiency.
- Retrofitting projects — Ø150–200 mm cutout fits existing ceilings; tool-free installation minimizes downtime.
